FR4-prototype PCBs

FR4-protottype PCBs

up to 8 layers, different copper cladding, special options, from 12h-express.

price example for:
  • / 10 pieces 160x100mm², 2-layers, 1,6mm, 35µm copper
  • / minimal 0,15mm struktures and 0,30mm drills
  • / RoHS-compliant surface finish
  • / solder mask green, 100% elektrical test
  • / outline routing (special shapes included)
  • / production time 12 working days

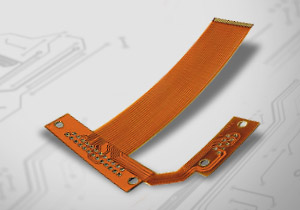

Flexible Printed Circuits

Flexible Printed Circuits

up to 2 layers, adhesive-base polyimide, special outline laser cut, stiffeners optional

price example for:
  • / 10 pieces 130x25mm², 2-layers, 0,17mm, 28µm copper
  • / minimaum 0,15mm struktures and 0,30mm drills
  • / immersion gold (ENIG) surface finish
  • / solder mask or cover-lay (depends on design)
  • / outline laser-cut (special shapes included)
  • / production time 22 working days

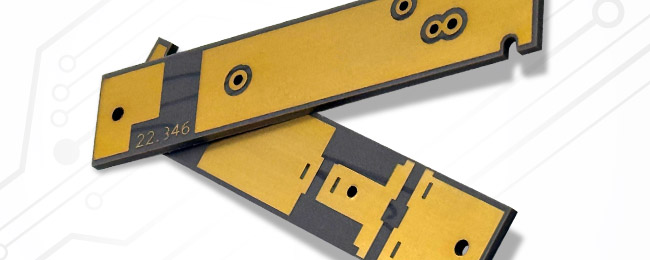

Rogers-HF-Printed Circuits

Rogers-HF-Printed Circuits

RO4350B, RO4003C, MEGTRON6, several thicknesses and special options

price example for:
  • / 3 pieces 70x70mm², 2 layers, 0,51mm, 35µm copper
  • / minimum 0,15mm structures and 0,30mm drills
  • / immersion tin or HAL lead free surface finish
  • / solder mask green, 100% elektrical test
  • / outline routing (special shapes included)
  • / production time 7 working days

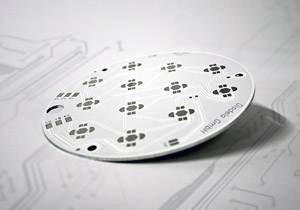

Aluminium-IMS-Printed Circuits

Aluminium-IMS-Printed Circuits

Several thicknesses and colours, High-performance isolation,
also as 12h-rxpress

price example for:
  • / 10 pieces 30x30mm², 1 layer, 1,0mm, 35µm copper
  • / 1,6 W/mK heat conductivity
  • / HAL-lead free surface finish
  • / white solder mask
  • / outline routing (special shapes included)
  • / production time 10 working days

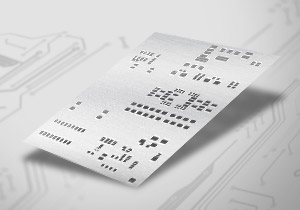

SMT-stencils

SMT-Stencils

Several standard systems, special options like nano-finish, from 12h-express

price example for:
  • / 1 piece "LeitOnSparFix", 196x297mm² (A4)
  • / stainless steel 120µm or 150µm
  • / double sided brushing
  • / including text engraving
  • / production time 8 working days

All printed circuits are available as mass production over our Asian subsidiary, too!

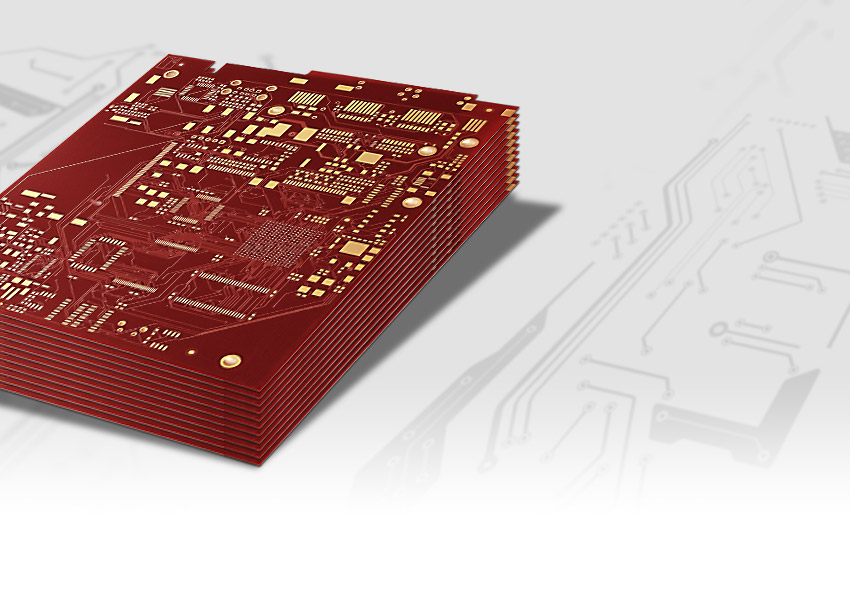

PCB Mass Production

FR4-printed circuits mass production

FR4-printed circuits from Asia

price example for:
  • / 5.000 pieces 100x100mm², 2 layers, 1,0mm, 35µm copper
  • / minimum 0,15mm structures and 0,30mm drills
  • / HAL-lead free surface finish
  • / solder mask (green, red, blue, white or black)
  • / silk screen print double sided (white or black)
  • / including UL-logo
  • / outline routing (special shapes included)
  • / 100% electrical test (adapter-test)
  • / 100% quality check from LeitOn in Asia
  • / x-sections and measurement reports (if required)
  • / production time starting at 15 working days (faster pre-lots possible)
  • / call-orders for convenient lot-delievery possible
  • / plus setup costs
